Designed to fit 60mm diameter side entry LED luminaires & lanterns to columns

Bracket sits on top of the column and the lantern fits over the outreach arm

Integrated cable slot for easy wiring to luminaires

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Complete with M10 grub screws & weatherproof cap

• Galvanized finish

Part Number: SOA60200

Arm Length: 200mm

Height: 260mm

Arm Diameter: 60mm

Column Entry:76mm to 83mm

Bracket Weight: 2.4kg

Designed to fit 60mm diameter side entry LED luminaires & lanterns to columns

Bracket sits on top of the column and the lantern fits over the outreach arm

Integrated cable slot for easy wiring to luminaires

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Complete with M10 grub screws & weatherproof cap

• Galvanized finish

Part Number: SOA60500

Arm Length: 500mm

Height: 260mm

Arm Diameter: 60mm

Column Entry: 76mm to 83mm

Bracket Weight: 3.8kg

Designed to fit two 60mm diameter side entry LED luminaires & lanterns to columns

Bracket sits on top of the column and the lanterns fits over the outreach arms

Integrated cable slot for easy wiring to luminaire

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Complete with M10 grub screws & weatherproof cap

• Galvanized finish

Part Number: DOA60200

Arm Length: 200mm each

Height: 260mm

Arm Diameter: 60mm

Column Entry: 76mm to 83mm

Bracket Weight: 3.5kg

Designed to fit two 60mm diameter side entry LED luminaires & lanterns to columns

Bracket sits on top of the column and the lanterns fits over the outreach arms

Integrated cable slot for easy wiring to luminaire

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Complete with M10 grub screws & weatherproof cap

• Galvanized finish

Part Number: DOA60500

Arm Length: 500mm each

Height: 260mm

Arm Diameter: 60mm

Column Entry: 76mm to 83mm

Bracket Weight: 6kg

Heavy duty single floodlight bracket to sit on top of a 76mm lighting column

Can accommodate one LED floodlight from 10W to 400W

Cable slot on rear for easy wiring to floodlight

Complete with M12 bolts, washers & grub screws

Easily drillable for the fixing of CCTV cameras and other applications

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Fits one LED floodlight up to 20kg

• Galvanized finish and complete with M12 bolts, washers & grub screws

Part Number: FLCB1

Top Plate Size: 100mm x 350mm

Height: 260mm

Load Weight: 20kg max

Column Entry: 76mm to 83mm

Bracket Weight: 3kg

Heavy duty twin floodlight bracket to sit on top of a 76mm lighting column

Can accommodate two LED floodlights from 10W to 400W

Cable slot on rear for easy wiring to floodlight

Complete with M12 bolts, washers & grub screws

Easily drillable for the fixing of CCTV cameras and other applications

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Fits two LED floodlights up to 20kg each

• Galvanized finish and complete with M12 bolts, washers & grub screws

Part Number: FLCB2

Top Plate Size: 100mm x 700mm

Height: 260mm

Load Weight: 40kg max

Column Entry: 76mm to 83mm

Bracket Weight: 4.6kg

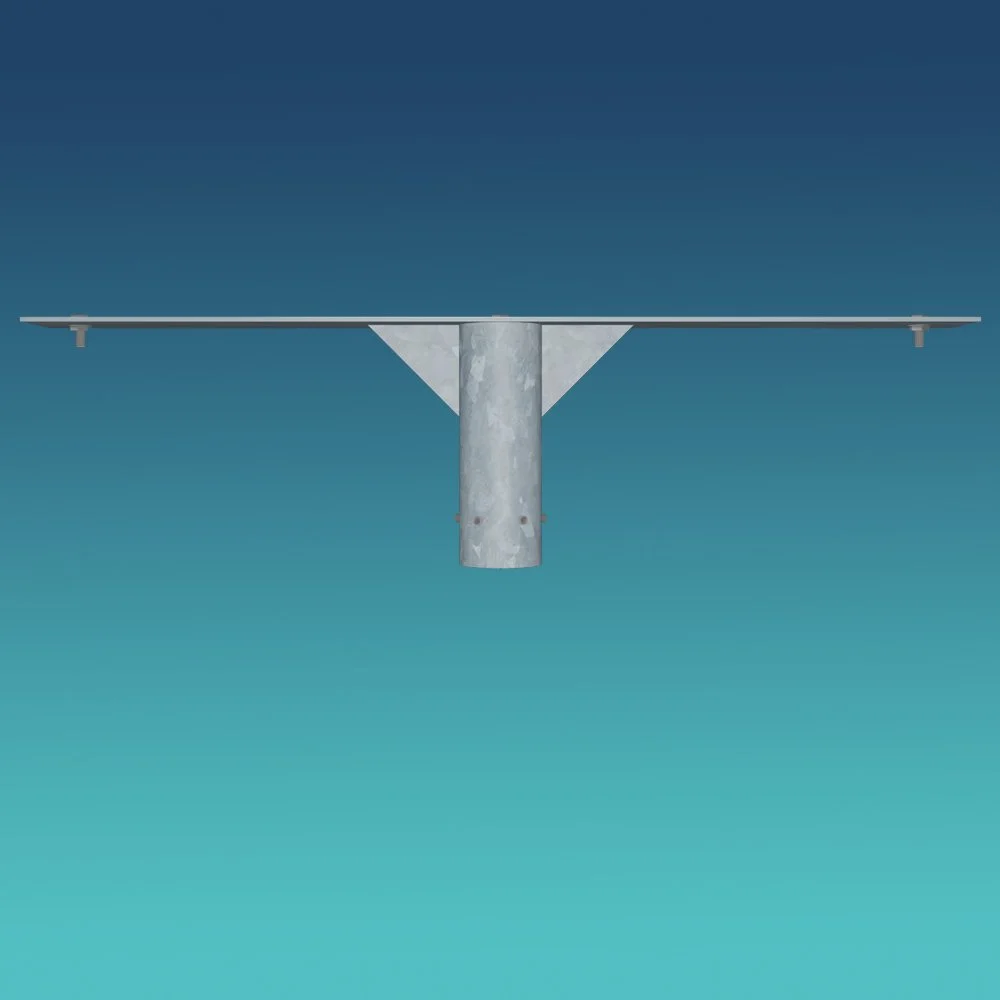

Heavy duty triple floodlight bracket to sit on top of a 76mm lighting column

Can accommodate three LED floodlights from 10W to 400W

Cable slot on rear for easy wiring to floodlight

Complete with M12 bolts, washers & grub screws

Easily drillable for the fixing of CCTV cameras and other applications

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Fits three LED floodlights up to 15kg each

• Galvanized finish and complete with M12 bolts, washers & grub screws

Part Number: FLCB3

Top Plate Size: 100mm x 1000mm

Height: 260mm

Load Weight: 45kg max

Column Entry: 76mm to 83mm

Bracket Weight: 7.5kg

QUAD FLOODLIGHT COLUMN BRACKET - FLCB4

Heavy duty quad floodlight bracket to sit on top of a 76mm lighting column

Can accommodate four LED floodlights from 10W to 400W

Cable slot on rear for easy wiring to floodlight

Complete with M12 bolts, washers & grub screws

Easily drillable for the fixing of CCTV cameras and other applications

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 76mm diameter lighting columns

• Fits four LED floodlights up to 15kg each

• Galvanized finish and complete with M12 bolts, washers & grub screws

Part Number: FLCB4

Top Plate Size: 750mm x 750mm

Height: 260mm

Load Weight: 60kg max

Column Entry: 76mm to 83mm

Bracket Weight: 7.7kg

Designed to fit 60mm diameter side entry LED luminaires & lanterns to flat walls

Suitable for fitting on to wall surfaces such as brick walls, cladding, wood etc

Bracket shown finished in black paint

Integrated cable slot on rear of bracket for easy wiring to luminaire

Complete with wall fixing kit

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 60mm diameter entry luminaires

• Lantern fits over outreach arm

• BZP finished & complete with wall fixing kit

Part Number: LFWB60

Arm Length: 200mm

Arm Diameter: 60mm

Back Plate: 150mm x 150mm

Fixing Size: M8

Bracket Weight: 0.9kg

Bracket shown finished in black paint

Designed to fit 60mm diameter side entry LED luminaires & lanterns to wall corners

Suitable for fitting on to wall surfaces such as brick walls, cladding, wood etc

Integrated cable slot on rear of bracket for easy wiring to luminaire

Complete with wall fixing kit

Bespoke sizes & colour finishes to your requirements available upon request

• Fits all 60mm diameter entry luminaires

• Lantern fits over outreach arm

• BZP finished & complete with wall fixing kit

Part Number: LCWB60

Arm Length: 200mm

Arm Diameter: 60mm

Back Plate: 150mm x 150mm

Fixing Size: M8

Bracket Weight: 1.2kg

Designed for the fixing of LED floodlights & CCTV cameras to flat walls

Suitable for fitting on to wall surfaces such as brick walls, cladding, wood etc

Pivot hinge enables for an adjustable angle on the horizontal direction of the floodlight

Complete with wall fixing kit

Bespoke sizes & colour finishes to your requirements available upon request

• Floodlight fixes to the universal mounting

plate

• Fits one LED floodlight or CCTV camera

• Complete with wall fixing kit

Part Number: FPFWB

Depth: 135mm

Mounting Plate: 150mm x 65mm

Back Plate: 150mm x 150mm

Fixing Size: M8

Bracket Weight: 1.2kg

Designed for the fixing of LED floodlights & CCTV cameras to wall corners

Suitable for fitting on to wall surfaces such as brick walls, cladding, wood etc

Pivot hinge enables for an adjustable angle on the horizontal direction of the floodlight

Complete with wall fixing kit

Bespoke sizes & colour finishes to your requirements available upon request

• Floodlight fixes to the universal mounting plate

• Fits one LED floodlight or CCTV camera

• Complete with wall fixing kit

Part Number: FPCWB

Depth: 135mm

Mounting Plate: 150mm x 65mm

Back Plate: 150mm x 150mm

Fixing Size: M8

Bracket Weight: 1.4kg

TWIN FLOODLIGHT PIVOT FLAT WALL BRACKET - TFPFWB

Designed for the fixing of two LED floodlights & CCTV cameras to flat walls

Suitable for fitting on to wall surfaces such as brick walls, cladding, wood etc

Pivot hinge enables for an adjustable angle on the horizontal direction of the floodlight

Complete with wall fixing kit

Bespoke sizes & colour finishes to your requirements available upon request

• Floodlights fix to the universal mounting

plates

• Fits two LED floodlights or CCTV cameras

• Complete with wall fixing kit

Part Number: TFPFWB

Depth: 195mm

Width: 410mm

Back Plate: 150mm x 150mm

Fixing Size: M8

Bracket Weight: 2.9kg

HORIZONTAL TO VERTICAL FLOODLIGHT BRACKET - HZTOVT

Designed to allow for the downward angle of floodlights on column brackets

Suitable for on all floolights where the stirrup doesn’t go underneath the body of the fitting

Compatible with all floodlight column brackets in the Luma Fixings Range

Bespoke sizes & colour finishes to your requirements available upon request

• Floodlight fixes to the universal mounting plate

• Can be used to mount CCTV cameras

• HDG finished

Part Number: HZTOVT

Depth: 80mm

Front Plate: 200mm x 55mm

Fixing Size: M12

Bracket Weight: 0.6kg

Reducing bracket that converts a 76mm column post top to a 60mm spigot

Ideal for adapting existing columns to take new modern luminaires or brackets

Complete M10 grub screws

Galvanized finish

Bespoke sizes and colour finishes to your requirements available upon request

Part Number: PT89-60

Height: 230mm

Top Diameter: 60mm

Column Entry: 76mm to 83mm

Grub Screw Size: M10

Bracket Weight: 1.6kg

Black finished bracket shown reducing a 76mm column down to a 60mm fitting entry on a 50W post top luminaire from NVC Lighting
